2A3 SET Mono-Blocks Power Amplifiers ; 2A3M = M for Mono

2A3M-FFX

  • 6W+ Max measured / nominal 4.5W

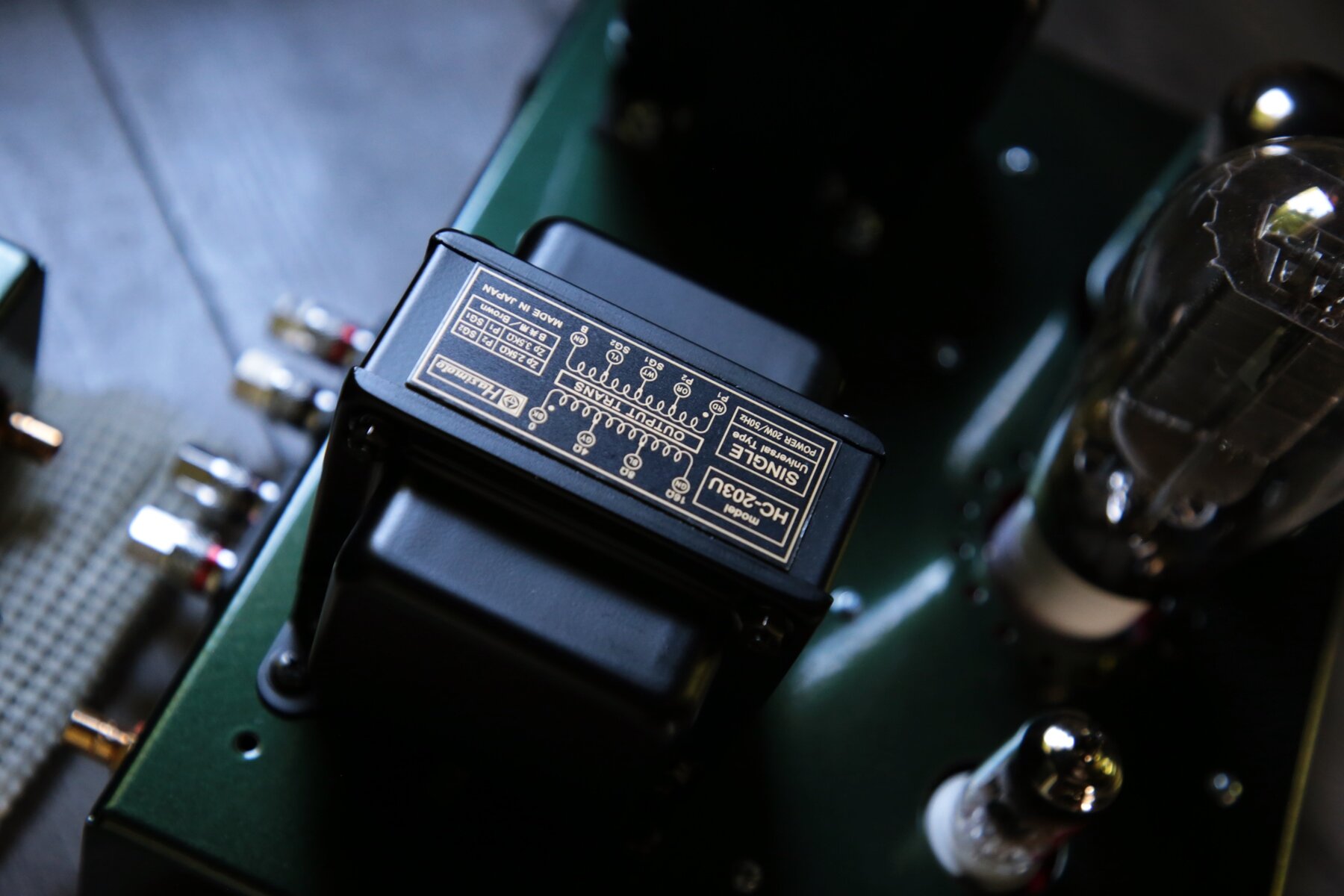

  • Full suit Hashimoto Trans with custom specification power transformer
  • Mundorf Silver in Oil Caps or Silver Gold Oil Caps (Recommended for hi eff speakers)
  • Mundorf EVO Oil Caps for the input stage
  • Furutech Rhodium AC Inlet
  • Cardas Rhodium RCA Inputs
  • Cardas choice of Copper/Gold/Rhodium Binding Posts (0-4-8-16) or Furutech Carbon Fiber Binding Post (One Pair)
  • Like all our 2A3 SET design heritage, the 2A3 tube is AC heated for the most authentic sound.
  • Short and accurate signal path for the most organic music replay while sustaining durability and reliability
  • Standard 1V Input Sensitivity @ 220K
  • Options: High gain version (0.5V Input Sensitivity, for use with passive preamps applications) OR Low gain version (1.5V Input Sensitivity at 4W full power - half gain of default /down 6 db, for ultra high efficiency systems)
  • 5U4 (or 5AR4/5V4/5Z4 Only)
  • Optional CMC USA Teflon 2A3 Tube Socket
  • Limited Production due to the short supply of Hashimoto Trans , AND minimum 2-3 months wait time
  • Pricing NOT INCLUDING 3" Foam Vault / Triple Layer Cartoon Box
  • $5,999 USD firm.

  • More angles from: Soundstage Network

Testimonial from Texas, USA. Speakers : Avantgarde Duo Omega Horn Speakers 107 db:

"The 2A3M-FFX mono-blocks arrived in good shape thanks to the durable packaging and were populated with matched pairs of Psvane WE275, NOS RFT 12AX7, and EML 5U4G.  After hooking them up to Avantgarde Duo Omegas I turned them on to warm up.  The sound has texture detail unlike any I have ever heard.  The sound is relaxing and easy but maintains detail and resolution. I am able to listen for long periods enjoying all of the detail that I am used to, without being bothered by either etched/harsh or rounded and dull sound. The bass is firm and solid, but not as quick or detailed as solid state amplification. But texture is the main strength, I have never heard such realistic texture and tone.  The clarity and bandwidth are surprisingly good, voices are easy to understand.  Voices are also convincing and visceral, a rare quality in my experience.  Great job, Frank!

THEY ARE THE QUIETEST AMPS I HAVE NOW."

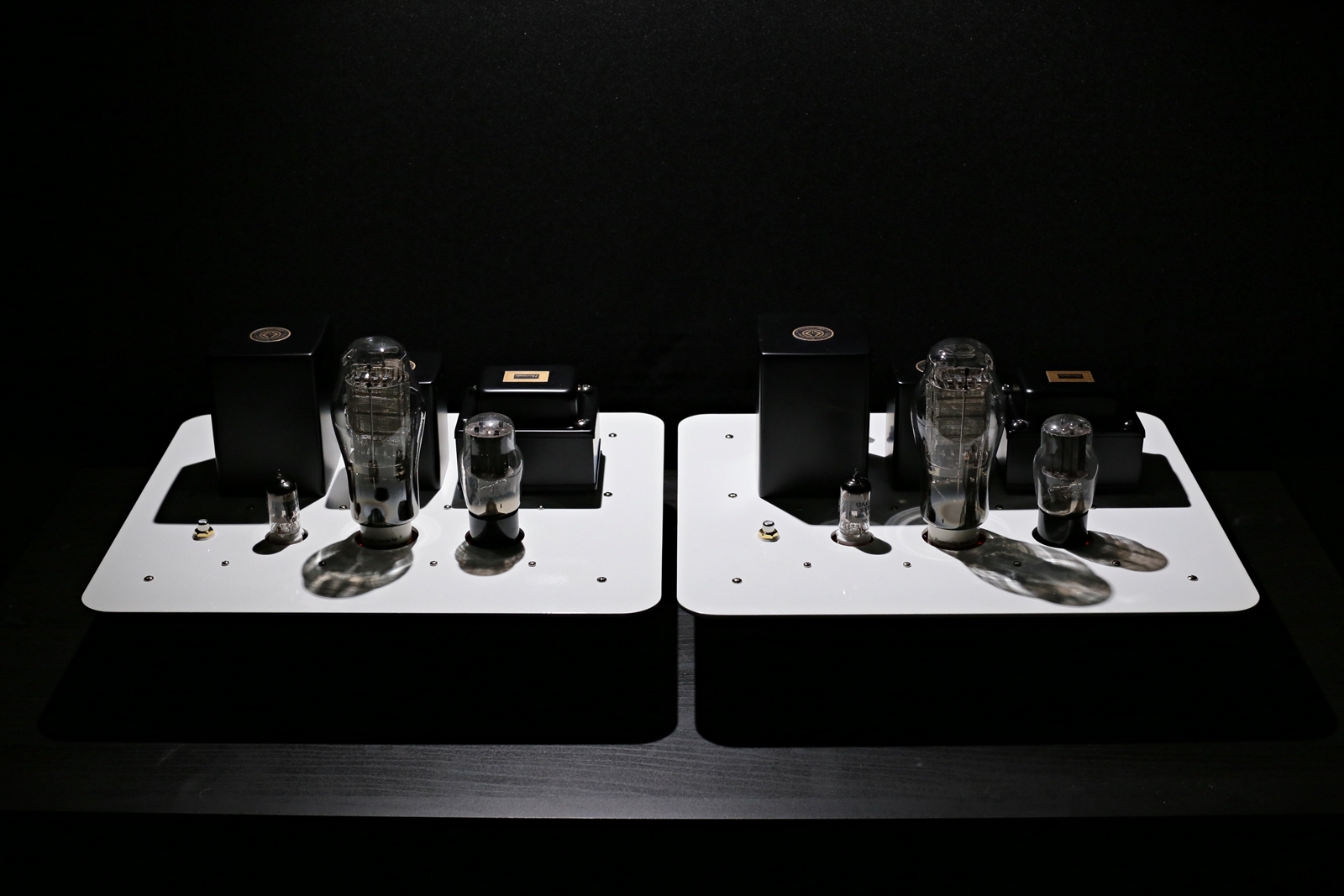

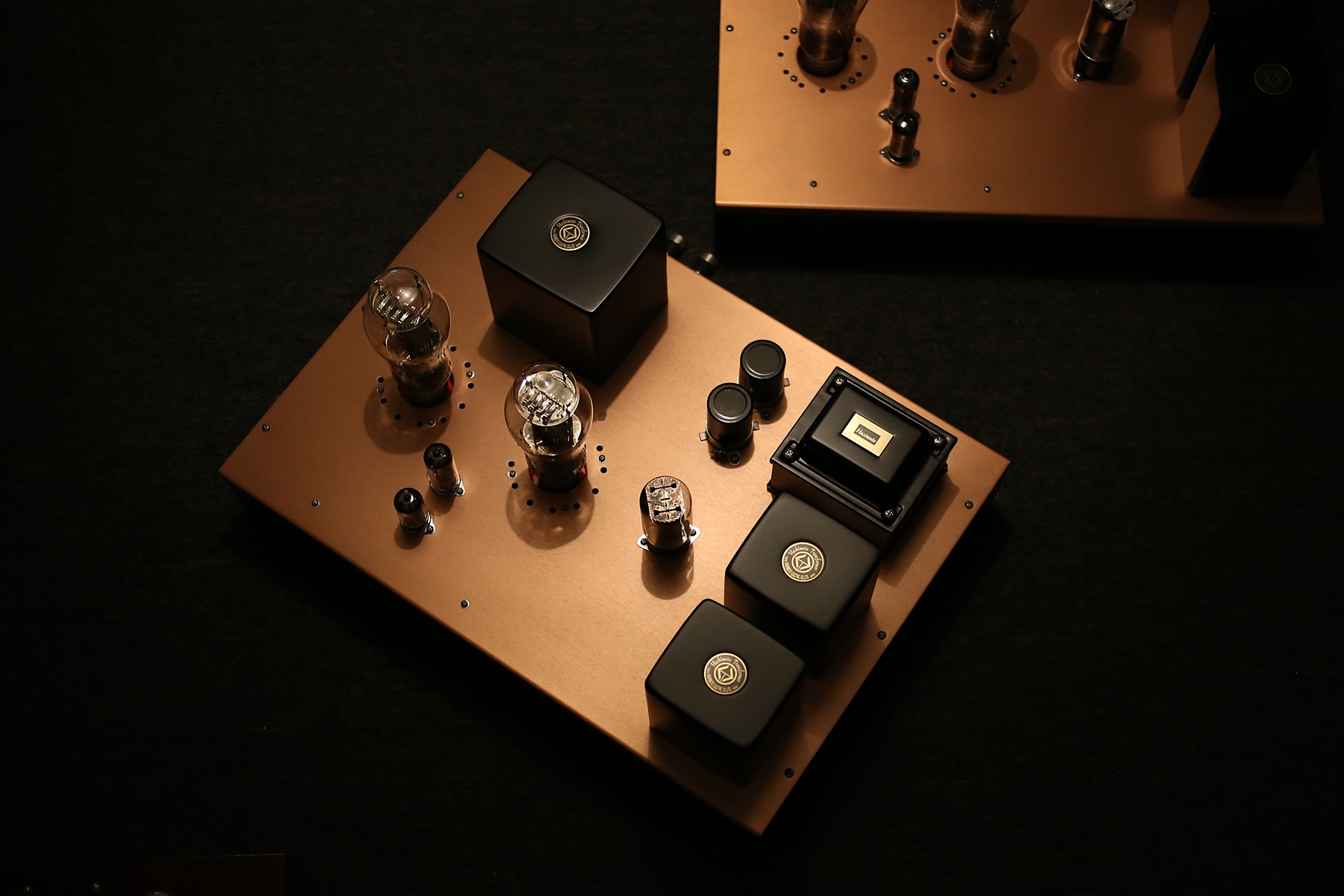

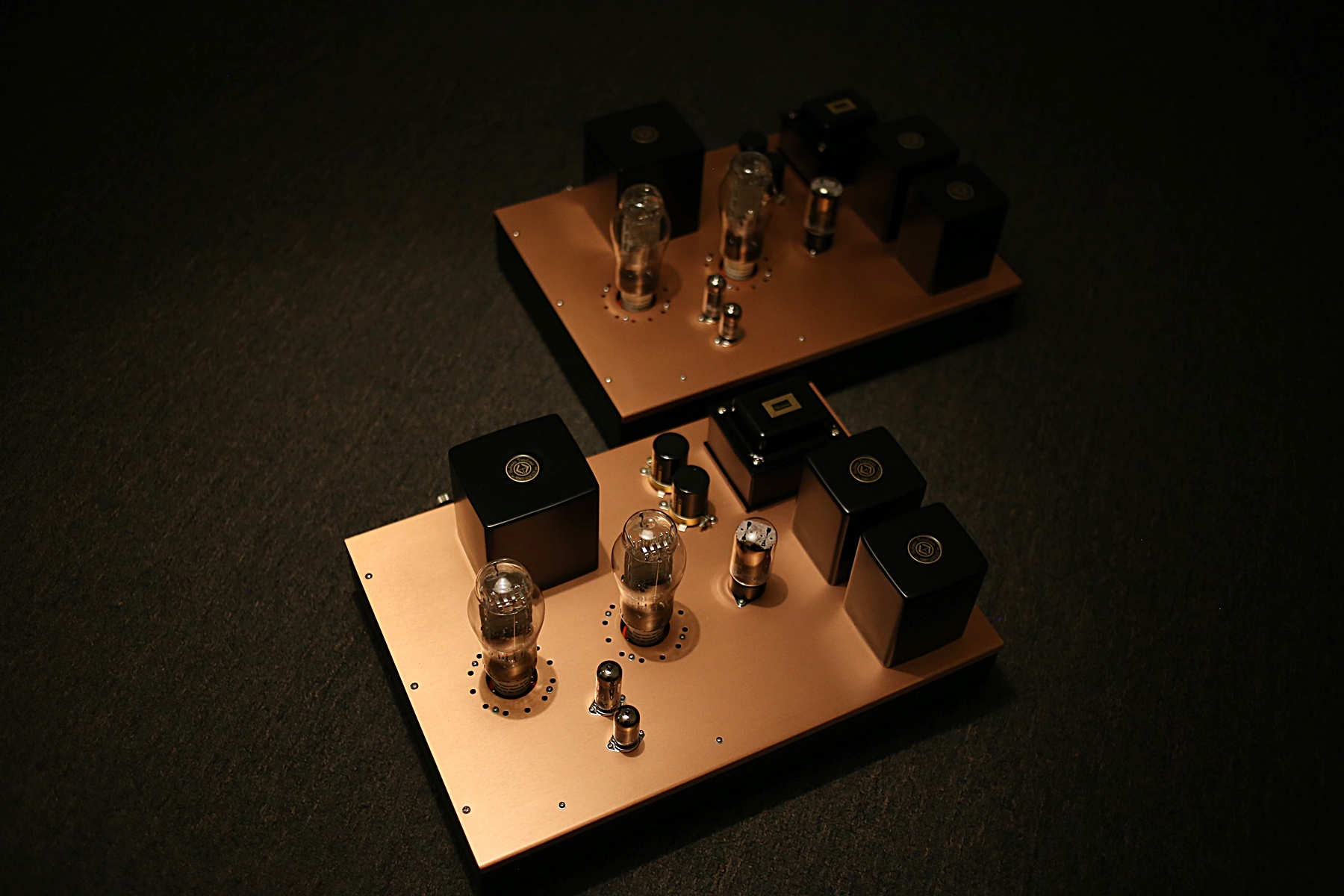

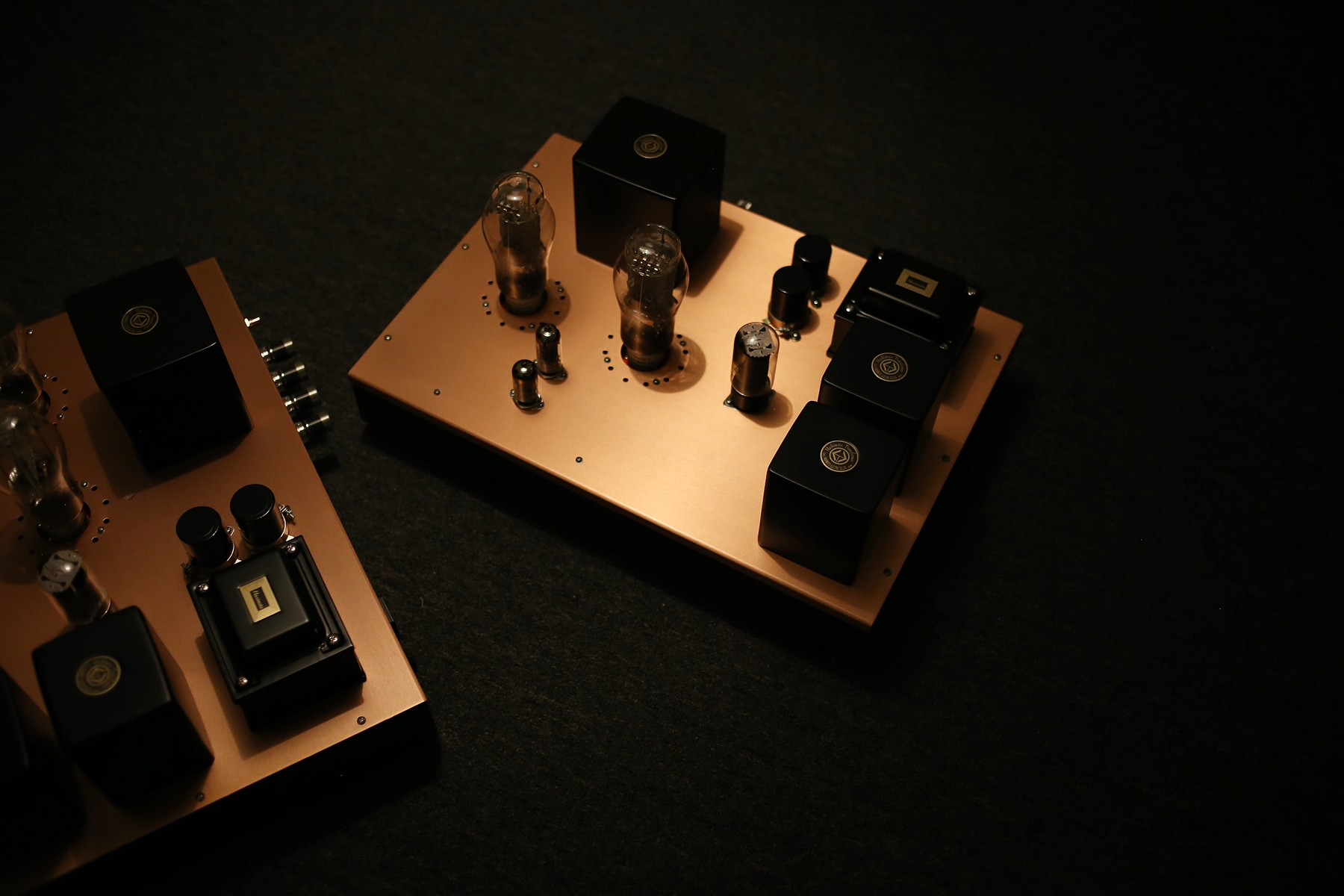

Shown Above : The 2A3M

  • 3.5W Class A Single Ended Triode Mono-Blocks
  • No negative feedback design optional(default with NFD)
  • 1V Input Sensitivity (Optional high gain 0.5V Input Sensitivity, for use with passive preamps applications
  • Complete Canadian Transformers
  • Triode Lab P-10 Output Transformers (Specific designed and engineered for low watts refinement around 2A3/45/300B/6V6 Tubes)
  • Hammond Canada Choke Transformer
  • Triode Lab Mono Power Transformer, proprietary designed for 2A3/45 Single Ended Triode application (CSA/UL Compliance)
  • 80 db Signal to noise ratio / A Weighted (Conservatively rated)
  • Mundorf Audiophiler ZN Coupling Caps
  • CMC USA Gold RCA Inputs
  • High Quality Binding Posts 8 / 16 Ohms
  • 12AX7 / 2A3 / 5U4 Only (5V4/5Z4 substitute)
  • 2017 New Option - Upgraded the ceramic 2A3 tube socket to CMC Teflon Type - so you will never insert wrong pins!



Triode Lab's Moon White (Pearl Effect + Metallic) $4,299 USD / Pair (as pictured above)

or

Canadian Walnut Edition Chassis $3,999 CAD / Pair - Starting (Reintroduced due to the high demand, available Triode Lab Orange / Hammertone Silver-Gray top plates)

Designer Notes: The Mono-Blocks sounds totally different good to the Stereo 2A3 although both portrait the 2A3's character better than anyone else on the planet. In comparison, the Stereo version you will find better tube bloom, sense of holographic, transparency, greater sense of weight and perfect decay you expected from a classic high end Single Ended Triode amp. The new mono-blocks are designed and voiced differently to a more modern type of presentation, but overall the mono-blocks are similar to the 2A3S in a general sense. They have the same sense of texture, palpability, and tone with great details (especially inner details). But in contrast, the mono-blocks are different in a few ways. First, the mono's will be tad fuller and more musical, it is easier to understand / distinguish to different voices and instruments, diction is better. Second, the imaging is slight more focus and bolder. It is even more visceral than the Stereo version. Last but not least, the monos will gives you a feeling it comes with a greater bandwidth and directness, thanks to the good/quieter 12AX7 versus the good ole 6SN7 on the Stereo (But this is the good old tube sound that is very addictive and attractive). This is the perfect amp to relax and just listen to lots of music. It also work well with ultra high efficient speakers that tend to sound too forward or bright. For 100 db + speakers, the FFX version or below 45 version are recommended.

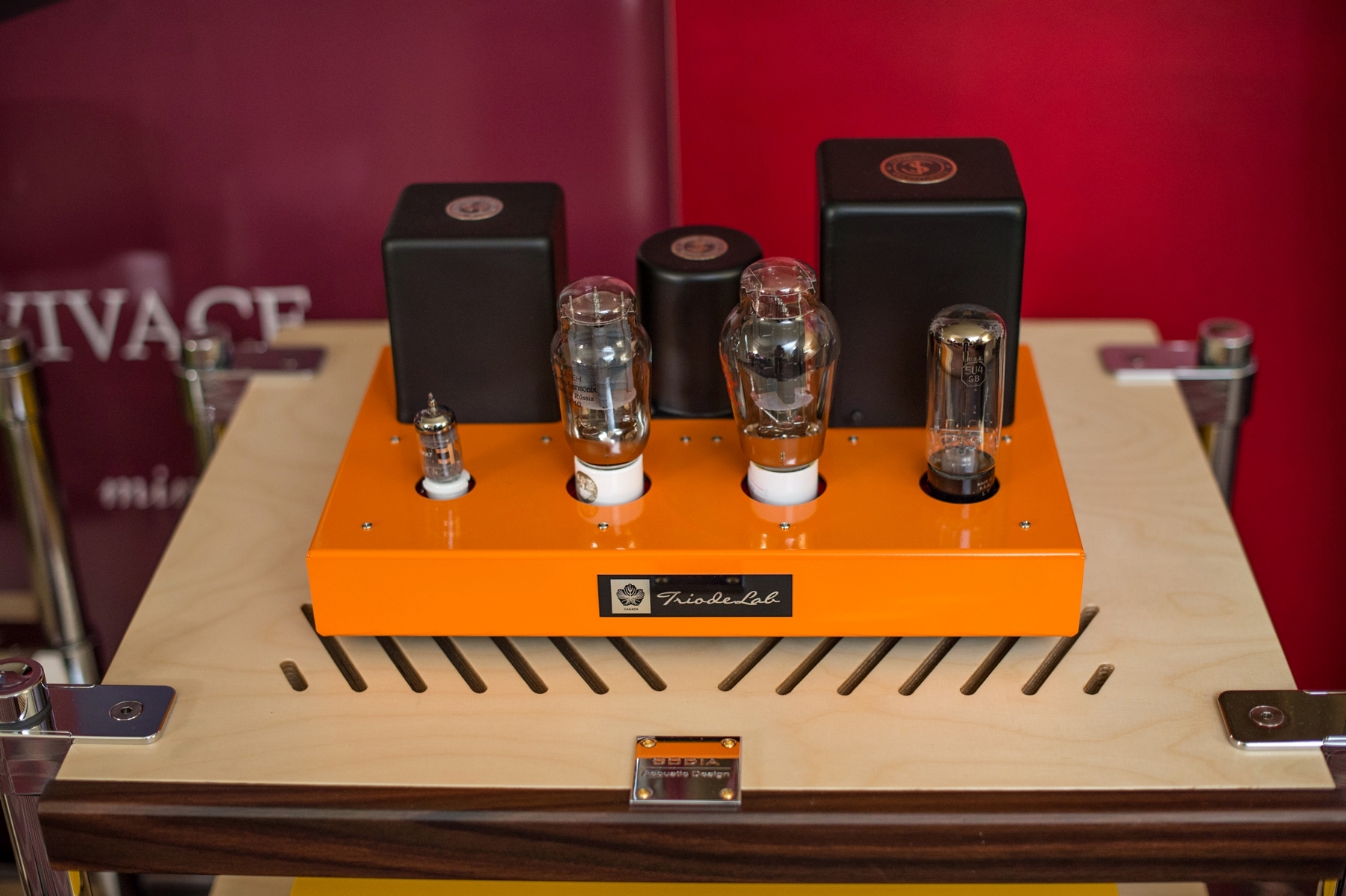

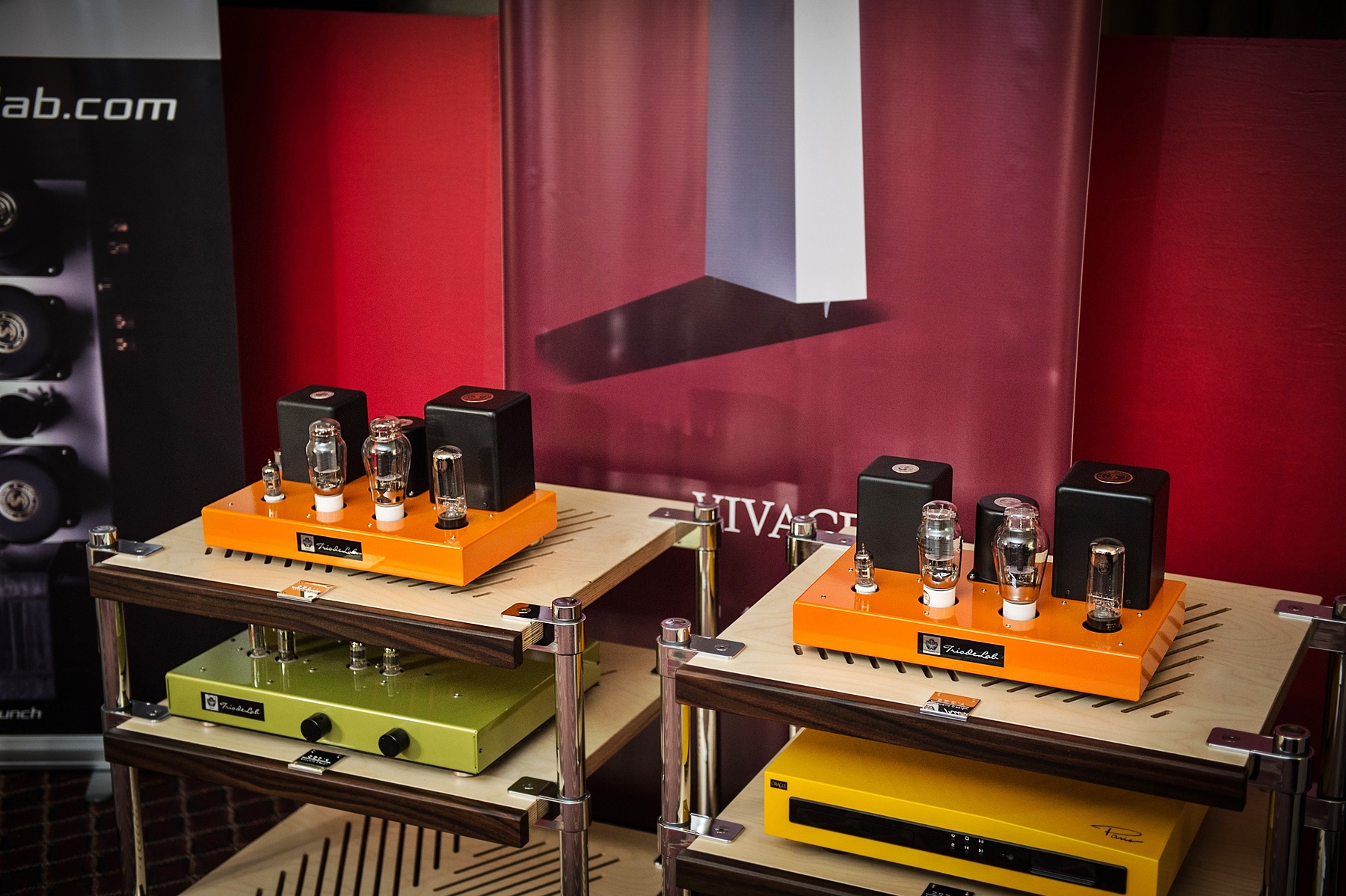

45 Tube Special Mono Blocks

  • 2 Watts Class A Auto-bias

  • Special tuning with perfect amount of NFB and enhanced grounding for super efficiency speakers

  • Mundorf EVO Oil Coupling Caps (Optional Mundorf Silver in Oil Coupling Caps)

  • Triode Lab Output Transformers 8/16 Ohms via High Quality Plastic Binding Posts

  • Triode Lab Power Transformers / Hammonds Canada Choke Transformers

  • Canadian Walnut Solid-Wood Chassis

  • 2017 New Finish - Hammertone Silver-Gray top plate, including tube cages now! (Orange remain an option)

  • 2017 New Option - Upgraded the ceramic 45 tube socket to CMC Teflon Type - so you will never insert wrong pins!

  • MSRP $3,999 CAD / Pair Only - without tubes, options and shipping.

  • 12AX7 / 45 Triode / 5U4 Only (5V4/5Z4 substitute, for 104 db +, 5R4 can be used for a even bigger power drop)

  • Ask us about the 45 Mini RS Mono Blocks (Parallel Single Ended)! or using copper sheet as top plates

  • Rated Output Power @ 8 ohms : 2W @ 1%
  • Operation : Class A Autobias
  • Input Sensitivity and Impedance: 1V at 220k +/-10%
  • Frequency Response: 20-20,000Hz +/-1db at 1 Watt
  • Hum & Noise (A-Weight): 80 db or better at rated output (Conservatively rated)

This is the only design that will safely, and putting the 45 tube in its best working operation point, because this is designed and engineered with the 45 tube, not the more powerful 2A3 tube. One set of variables / design will NOT able to maximize the full potential of two different tubes! And this is where the 45 Mono Blocks come in, and they are very popular on 100 db + applications.


2A3M-II

  • 8W Single Ended Class A Autobias
  • 9W Maximum. Yes, that is more powerful than a 300B
  • 2 x 2A3, 1 x 12AX7, 1 X 5U4/GZ32 PER BLOCK
  • Two choices in transformers : Triode Lab or James
  • Mundorf Silver in Oil Caps (Quad) / CMC Gold RCAs
  • $6,999 USD / Pair
  • Canadian Transformers will be used starting 2017

This is the parallel version, doubles the power, while maintain the best voice of 2A3. A perfect amount of circuitry tuning, parts matching, and our lengthy aural testing make this perhaps the best sounding pair of 2A3 Parallel SET Mono Blocks on the market. The brilliancy of the 2A3 highs and unique tone, power & control, bass and ease of setup is far easier to be have. Something you can drive a pair of little speakers so big people been looking for a sub-woofer!

"The 2A3M-II monoblocks offer such depth of resolution and beautiful recreation of musical sources that they are in a class by themselves. I don’t know all the exact technical details with which Frank builds his equipment, but I do know their ability to generate a crystalline clear soundstage that is holographic, while remaining lifelike, creates chills on my spine frequently. This phenomenon is extraordinary to experience when it occurs as a result of stereophonic reproduction. I hope that you have had a similar experience so that you can place yourself in the seat in my room when it occurs and imagine what it is like to listen to these amps."

by Jon Eben Field, WallofSound.Ca


Is there an end? - ask for a stereo end game RS-R version.

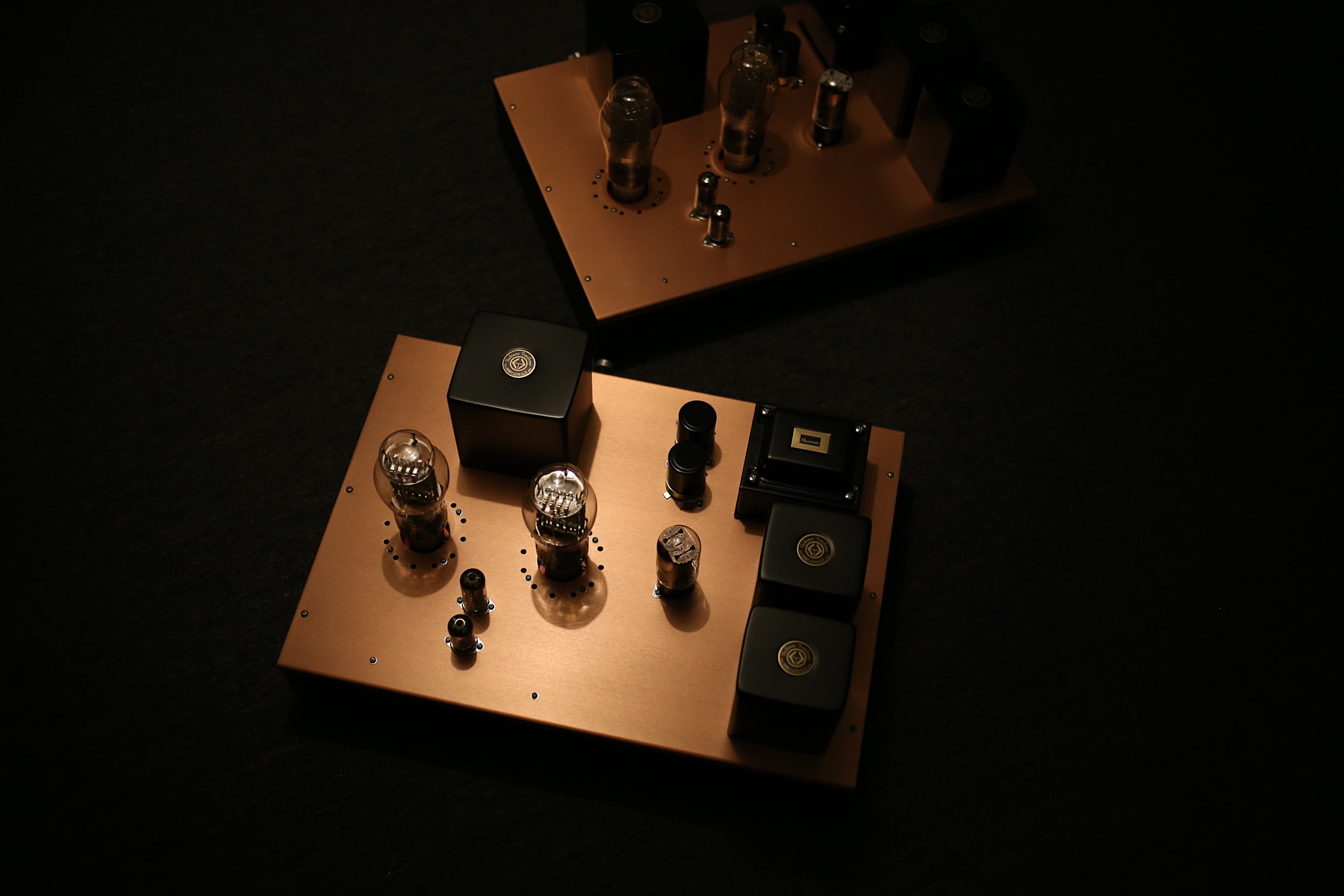

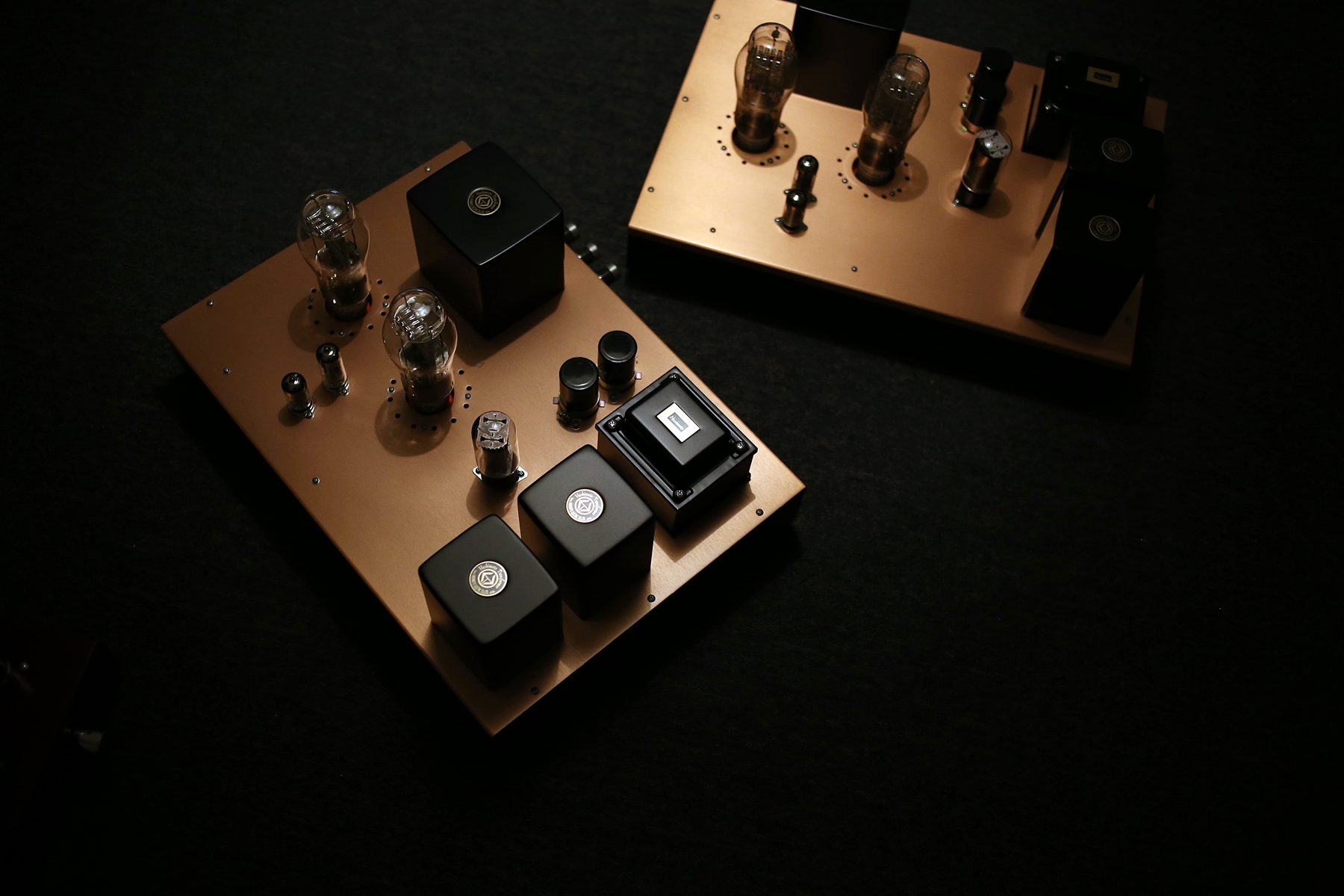

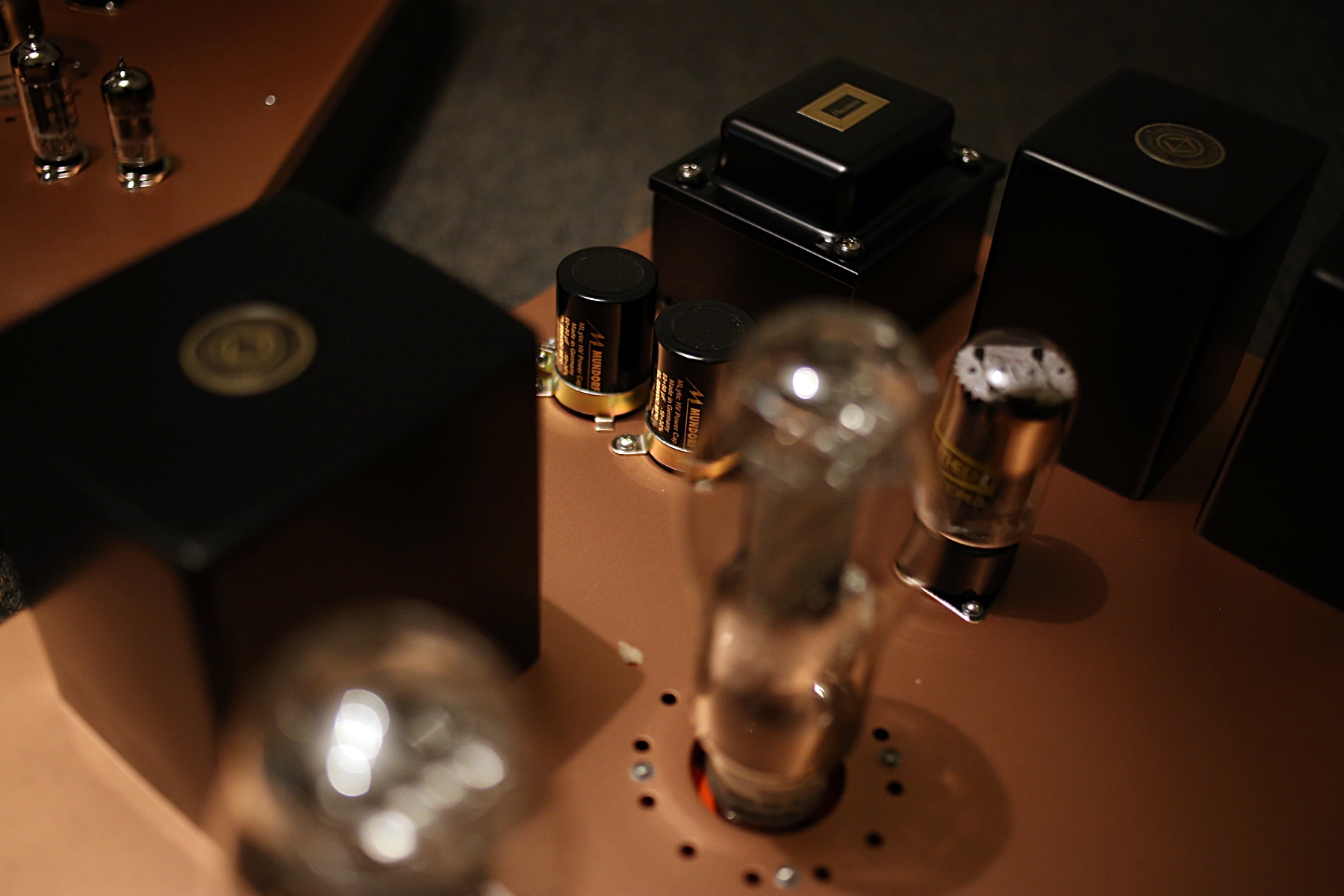

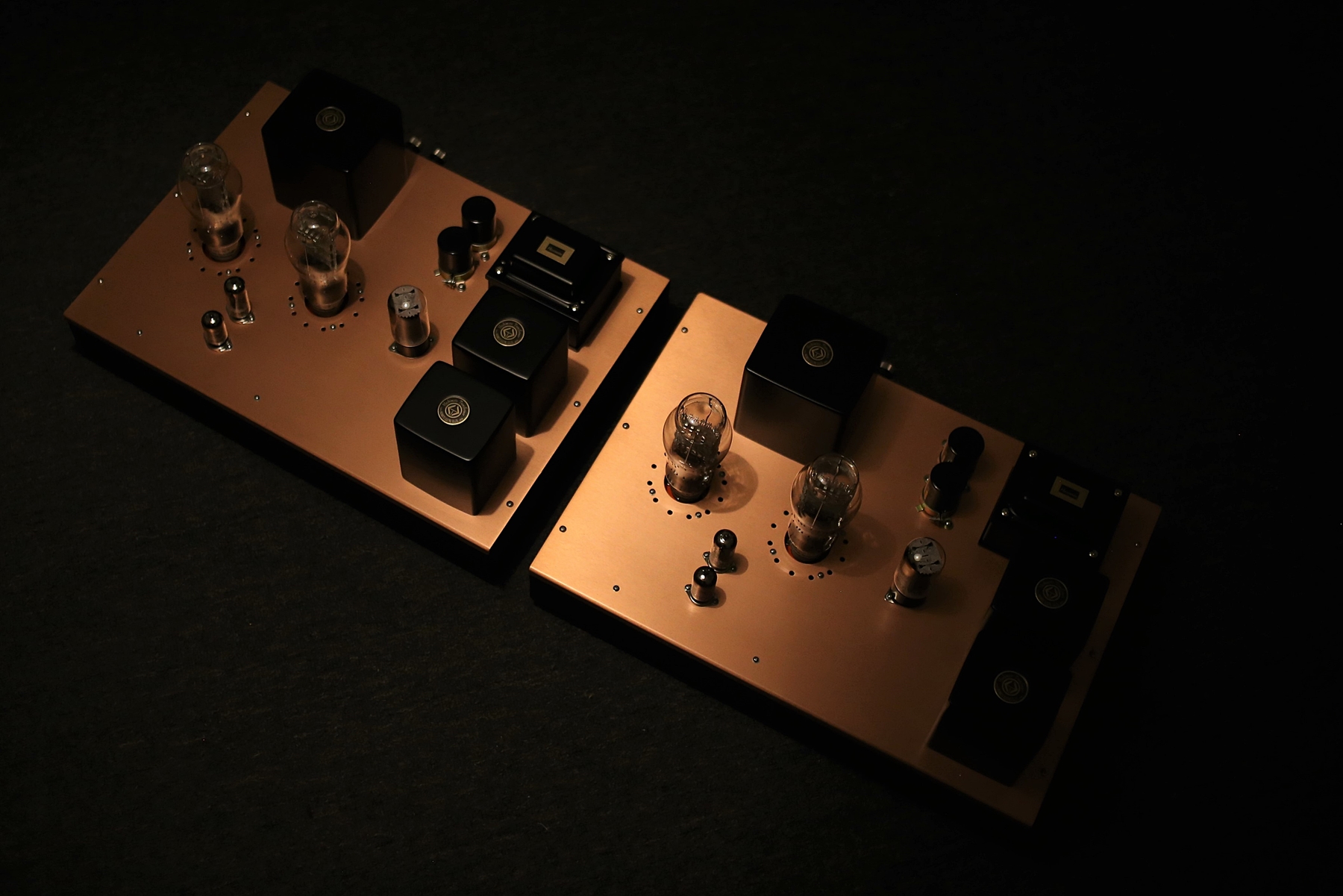

The 2A3 RS-R mono-blocks.

  • Parallel 2A3 per Channel - 8W minimum (It drives close to a 211, which really makes 9-10W in SE)
  • Full suit of Hashimoto transformers (Starting 2017)
  • Dual Hashimoto Choke transformers - One supply the operation and one supply the tubes), following its dedicated dual high quality Mundorf M-Lytic Ecaps
  • Hashimoto 2A3 power transformer  (The best kind power transformer for the 2A3 application currently, and it makes a substantial improvements on the AC heated 2A3 applications, it's not just quieter, but it sounds better!)
  • Chassis size : 18" W x 12" D x 2" H PER BLOCK
  • Rectified / Voiced by Mullard GZ32/ EML 274B (5AR4 / 5V4 / 5U4 ...etc all can be used)
  • Goodies - Cardas RCA / Binding Post 0-4-8-16 (or Furutech Carbon Fibre Binding Post 0-8 Ohms), Mundorf Silver in Oil Caps, Furutech Rhodium IEC...etc. Whichever high end parts work to your ears!
  • Pure Copper Chassis, finished in a semi-gloss lacquer for a rich and elegant presentation. The copper material is much heavier than its aluminum counterpart as well a good conductive material for electric (there are reasons why your experienced audiophiler say its a sweet thing!), and expensive to source and fabricate. It requires a week of dip, clean and polish right here in Toronto, before it can send off to our clear-coat facility with lint free gloves handling at all time. The time, labour, and going to four different shops easily jack up the value of these copper chassis north of $2K.
  • MSRP - $18,000 USD Pair with full suit of Hashimoto 8 Pcs Transformers or $16,000 CAD Pair with full suit of Triode Lab - Canadian Transformers
  • Pricing INCLUDING 3" Foam Vault / Triple Layer Cartoon Box / Wood-crate Shipping Arrangement. 100 lbs+
