The “Reserve Menu” page are for our top tier special models that are very specific or specialized. It is for expert users and experienced tube-philes, who know exactly what they are getting, or know what exact configuration and parts they wanted to listen to. The means of this page is made to lower confusion for the new wave of audiophiles getting into tubes. We, as one of the few remaining authentic tube specialist alive today, while making the highest quality tube amps , at times it could be too specific and niche to understand by those who want to learn more , and we certainly want to continually pass on the passion and tradition of tube sound that we makes to the new generations. Its like people who buy a 911 Cup Series Race Car , they know exactly the use of it and have the resources to utilize it at every new environment (track / weather) , but not for the ordinary same brand drivers.


Model : 6V6-FFX

2019+

In early 2000s, we made the EL84TT and it beats many so called “high end” triode systems. It easily is the benchmark and reference of all EL84 tube amps. So now, we want to make the best 6V6 integrated amplifier, true reference grade. With complete set of high end Hashimoto (Sansui) transformers from Japan. The heart (circuit) of the design is based on one 12AX7, and one pair of 6SN7 to drive the 6V6s. Its one of our favourite design (both sound and performance), which has a unique tone why we love to listen to the 6V6. This same design was really the same one our chief engineer used to pass his exam in college, which of course he earned a 100% score, 40 years ago. Today, along with the best HIFI transformers, with our traditional tube amps knowledge, and sound tunings - we present the new 6V6 FFX.

Quick facts:

  • HASHIMOTO Japan Flagship Grade 40W-10K Output Transformers

  • HASHIMOTO Japan Choke / Power Transformer

  • FURUTECH Japan Carbon Fibre Binding Posts 0-8 Ohms (4/16 Ohms Extra)

  • FURUTECH Japan Rhodium AC Inlet

  • FINALE Canada “Pink-Lingu” Rose-Gold Plated RCA Jacks

  • DACT Germany Selector Switch

  • ALPS Japan Blue Velvet Vol Pot

  • MUNDORF Germany Silver in Oil Coupling Caps

  • 4+4W Class A Auto-Bias (Optional 8-10W In Ultra Linear Mode)


    MSRP : $6,500 USD + Shipping (Triode Price) / $5,999 USD for Ultra Linear Mode (Using Hashimoto Classic 30W OPT / Like the one used on Sansui Tube Amps & Receivers)

Limited. Made to Orders Only. Lead time required.Pure copper chassis available for extra $2,000 USD.


Model: EL84TT - FFX

A true amp for the EL84/6BQ5/7189 fanatics!

Available to configure in Class A Push Pull Triode 7W, Pentode or Ultra Linear 15W+ Class A/B

Standard Part List : 15W Rated Hashimoto Potted Type Output Transformers (or the 30W Classic Sansui OPT made by Hashimoto), Cardas Binding Posts / RCA, Mundorf Silver in Oil, Furutech Rhodium IEC, High quality input wires, Soundcoats, QQQ Japan rectifier tube socket...etc

These are the finest wattage thanks to Hashimoto. They have the fewest power losses, the most quiet condition and ideal measurements in everything (these were measured better than almost over 100 db for the S/N ratio - which is VERY quiet), which makes a 15W"amp" drive like a 30W. Don't let the numbers fool you. The best tube amp will easily outpower your average quality tube amps so you can drive more different speakers PLUS, you always hear more. This is why most experienced tube-philes would only spend time with a tube amp mounted with decent transformers, because they know they are listening to everything out from their records/source.

Special Features:

  • FFX Limited Edition Power Amp/Developed complete with full suit of exotic Hashimoto transformers

  • FFX Silent Ground Technology - Optimal grounding network design and parts layout, along with best power supplies materials for the best hum and noise control and best S/N ratio. And yes, it measured quieter than any power transformer we have used for EL84/6BQ5 type tubes, salute to Hashitmoto!

  • FFX V-max Tunings - All FFX models are unleashed by us, with all its special advantage with its exotic grade parts and settings, which allow us to remap the entire circuitry for its maximum "Valves" output power and quality, both numbers and aural.

  • This is one of the quietest amp we have come across!  The power (read VERY conservative) and the quality is exceptional for its price, this is built for our loyal customers who have seen the potential of our EL84TT. Finished in Porsche Riveria Blue (or your preferred colour). All parts and materials tailored to customer.

 $5,999 USD + Options

Limited. Made to Orders Only. Lead time required.Pure copper chassis available for extra $2,000 USD.

IMG_8942 (2).jpg

EL84TT-FFX R

By using 7189a / EL84M tubes ONLY, with all newly-redesigned circuitry for this higher power output tube, which focuson strengthened/enhanced front-end design (an autobalance design is also used over trim pot), as well, an upgraded power supply handles the extra wattage output AND operating voltage. The FFX-R enables to yield a solid 20W Audobias in Pentode Class A/B or 8W in Triode Class A.

The FFX-R have the Hashimoto Output Transformers upgraded to 25W Potted or 30W Classic Type Sansui Output Transformers by Hashimoto (the one used on the EL84-TTS), also a bigger power transformer is used, as the operating point shifted up from under 280V to 300-330V. An extra pair of oil caps is needed at the front end, along with a few pairs of extra E-caps, which are crucial to the other 4 Silver in Oil coupling caps to make up this perfect topology - nothing less, to finish off as the best of its type around the world. And for those who really love this tube so much, ask us about the EL84-FFX RS that puts out a solid 27W+27W, with fixed bias, complete with our Canadian in-house transformers.

$6,999 USD + Options

Limited. Made to Orders Only. Lead time required.Pure copper chassis available.



2A3 Push Pull Mono-Blocks

Where D.H.T. combines the beauty of power.

2019 : Our original 2A3GT Push Pull monos are pushing 10 years old, and aging more gracefully than we had ever imagined. However, we haven’t been sitting around sipping espresso lattés and admiring our handiwork this past decade! Instead we’ve been rethinking everything, as usual. How do we improve a design that already ranks among the best (Glad you asked)? Anyway, for the whole new Second Generation:

Model: 2A3GT-FFX (MK2)

Power: 10W-15W Class A Operation

The 2A3GT-FFX (MKII) will be engineered using the finest components in the world, including the usual FFX treatments plus :

·         Top-grade HASHIMOTO chokes and power transformers , or potted Hammonds (Made in Canada)

·         HASHIMOTO (Sansui) Output transformers

·         Mundorf M-Tube Cap (Power Supply)

. Silver Oil Coupling Caps

·         Furutech AC Inlets

. Cardas binding posts (For North America) or CMC/Furutech insulated Speaker Binding Posts (For Asia / Euro)

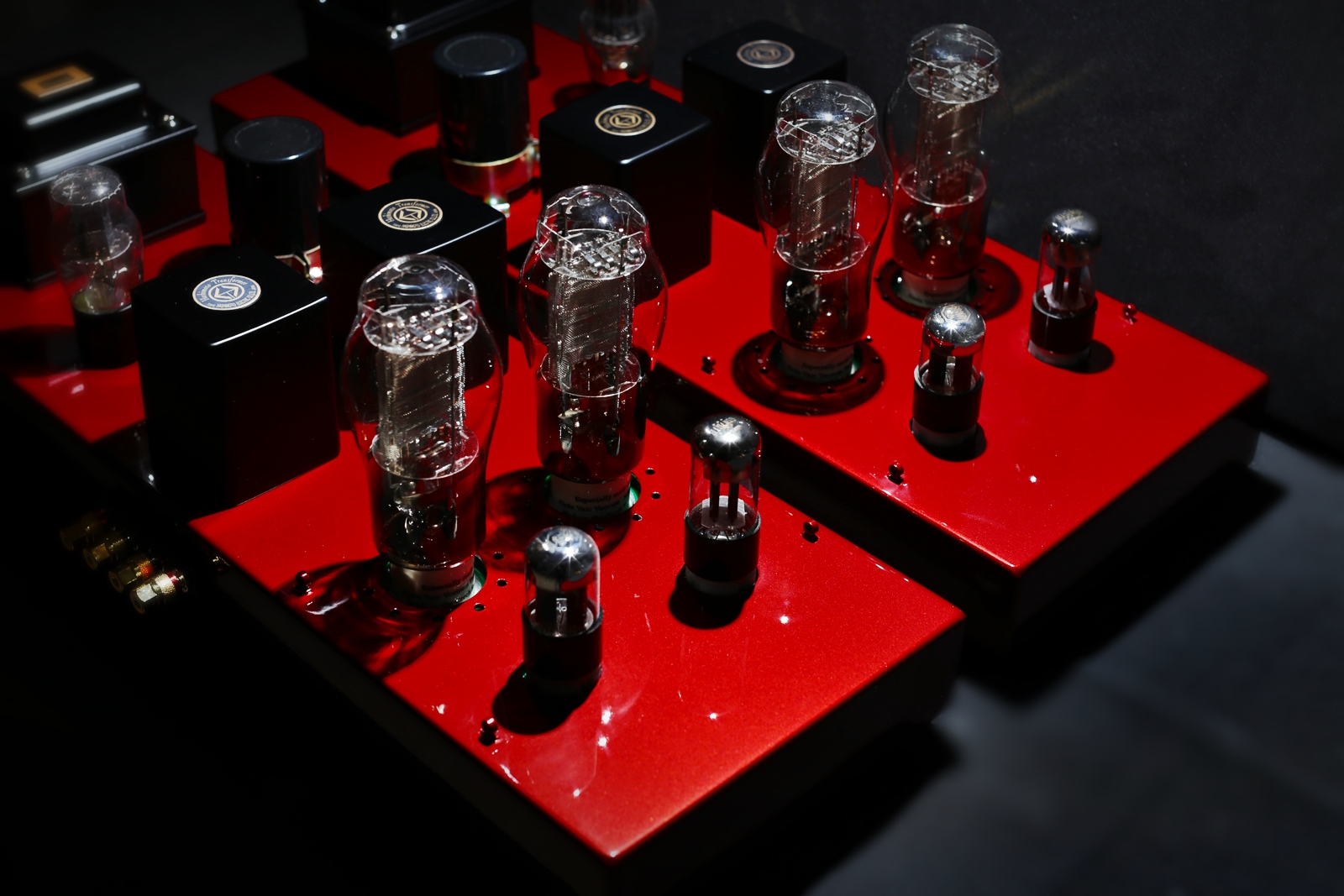

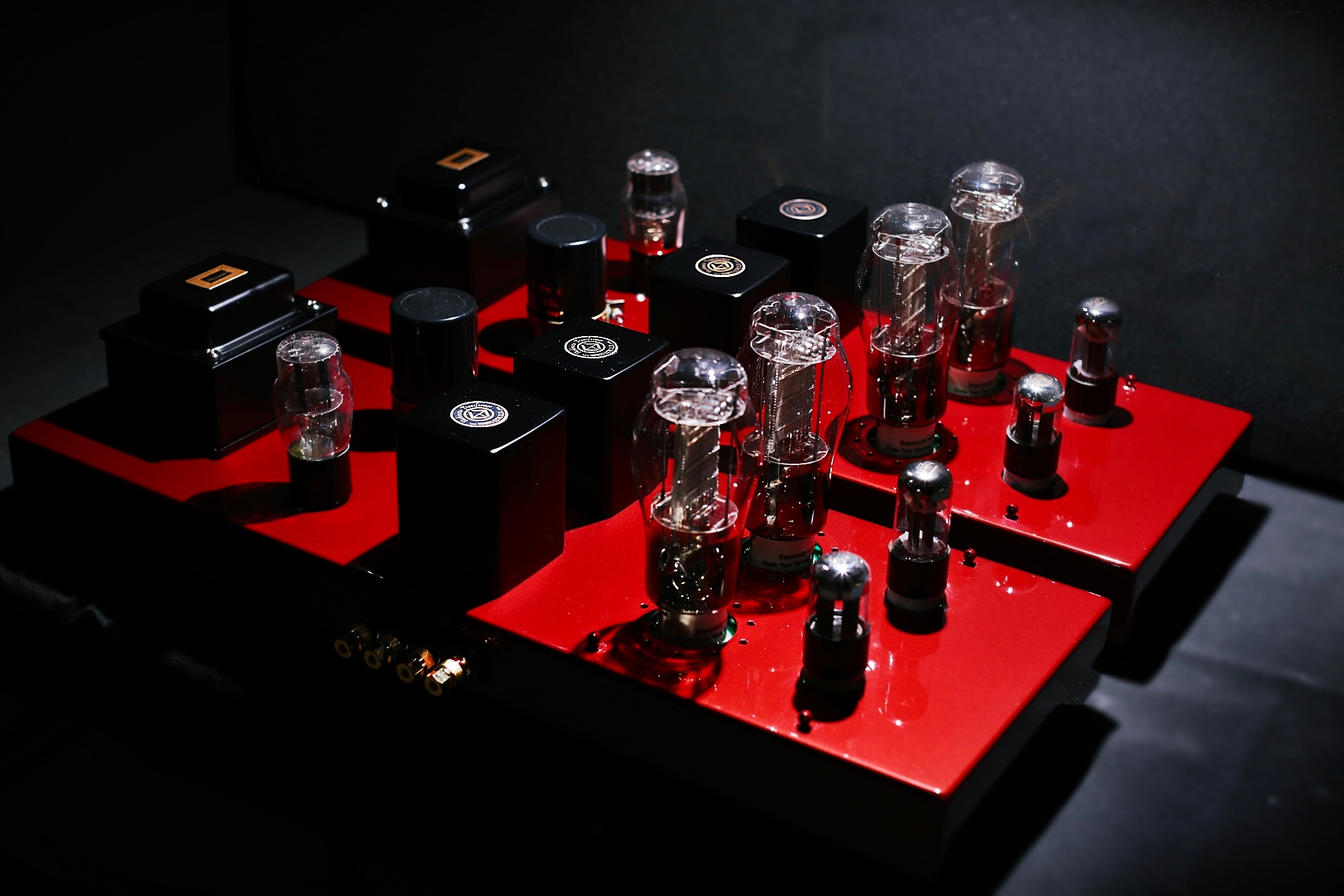

·         Choice ofo ur 9 Factory Finishes, or your favourite car paint (Above shown using Porsche Rubin Red Metallic - $1200 Extra)

.         MSRP starting from $13,888 USD

.         Optional Pure Copper Chassis $2,000, hand polished to a medium gloss state. (See below)

- Class A 10W Minimum (Different model of transformers yield slight different power outputs), to max of 15W.

Special Features:

- FFX Limited Edition Power Amp/Developed complete with full suit of exotic Hashimoto transformers or equivalent high-end irons

- FFX Silent Ground Technology - Through optimal grounding network design and parts layout, along with best power supplies materials for the best hum and noise control and best S/N ratio.

- FFX V-max  Tunings - All FFX models are unleashed by us with all its special advantages such as its exotic grade parts and settings, which allow us to remapped the entire circuitry for its maximum "valves" output power and quality, both numbers and aural.
